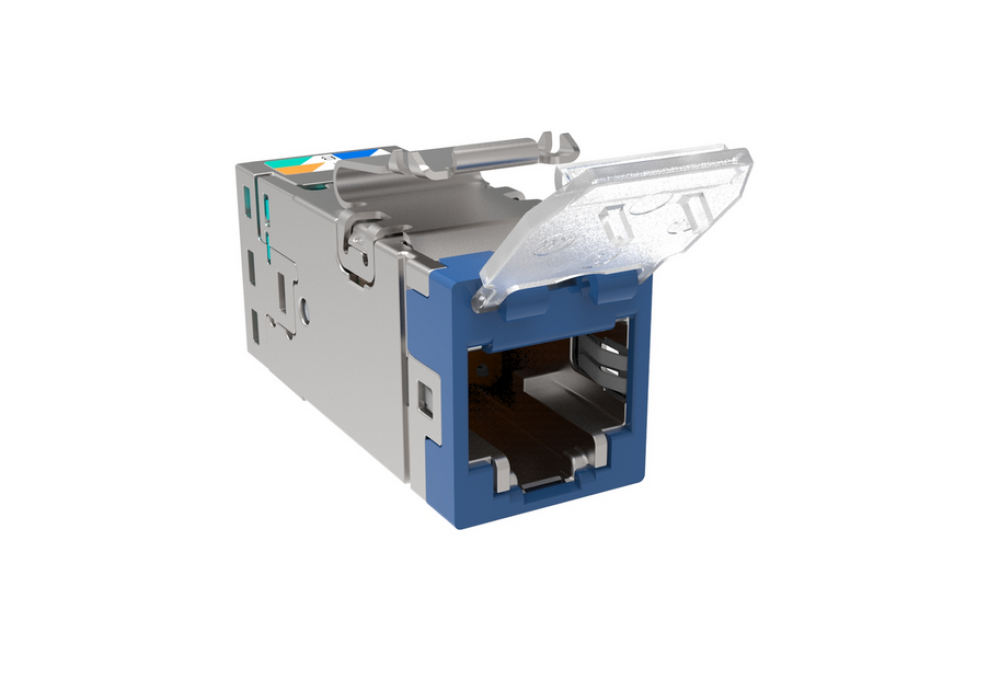

CommScope 2153365-BL | SLX Series RJ45 Cat6A Shielded Modular Jack with Hinged Dust Cover, Blue, 4-Pair
SKU: 2153365-BL
Category: Networking Products
Availability: 10000
Tag: commscope rj45 jack commscope cat6a jack commscope 2153365-bl commscope slx series jack blue rj45 modular jack blue cat6a keystone jack cat6a shielded jack shielded rj45 connector rj45 network jack rj45 data jack 4 pair rj45 jack slx rj45 jack blue ethernet keystone jack lan socket cat6a network outlet jack structured cabling jack idc termination jack t568a t568b jack poe compatible rj45 jack 10 gigabit ethernet jack high performance cat6a jack commscope netconnect jack shielded network connector dust cover rj45 jack hinged dust cover jack blue ethernet jack blue network keystone cat6a lan connector enterprise network jack data communication jack copper network jack patch panel compatible jack faceplate compatible rj45 jack industrial network connector professional networking accessories telecom rj45 jack structured cabling solution commscope blue jack cat6a shielded modular jack rj45 cat6a blue connector
Quantity:
Description
The CommScope 2153365-BL SLX Series RJ45 Cat6A Shielded Modular Jack is a high-performance networking solution designed for reliable and secure structured cabling installations. Engineered to support Cat6A transmission standards, this shielded modular jack delivers excellent network performance for high-speed Ethernet applications, including 10 Gigabit Ethernet deployments. The integrated hinged dust cover protects the jack from dust and contaminants, helping maintain optimal connectivity and extending product life.
Compatible with both solid and stranded conductors, the jack features IDC termination and supports T568A and T568B wiring configurations for installation flexibility. Its robust shielded design minimizes electromagnetic interference (EMI), ensuring stable data transmission in demanding network environments. The SLX Series jack is fully compliant with IEEE 802.3bt Type 4 Power over Ethernet (PoE++) standards, supporting up to 90W power delivery and over 3,000 mating cycles, making it ideal for enterprise, commercial, and data center applications.
Key Features- Category 6A shielded RJ45 modular jack for high-speed network applications.
- Integrated hinged dust cover for enhanced port protection.
- Supports 10 Gigabit Ethernet and ISO/IEC Class EA performance.
- Compatible with both solid and stranded conductors.
- Supports IEEE 802.3bt Type 4 PoE++ up to 90W.
- Gold-plated contacts for reliable signal transmission.
- Shielded construction helps reduce EMI and crosstalk.
- Compatible with CommScope SL Series faceplates and panels.
- Supports T568A and T568B wiring standards.
- Designed for enterprise, commercial, and data center network deployments.
Product Specifications
Brand: Commscope
Model Number: 2153365-BL
Availability: In stock
Minimum order quantity: 1
Maximum order quantity: 10
Listed date: 18th Jun, 2026
Specifications
General Specifications
| Specification | Details |
|---|---|
| Product Name | CommScope 2153365-BL SLX Series RJ45 Cat6A Shielded Modular Jack |
| Product Type | Modular Jack |
| Product Series | SLX Series |
| Portfolio | NETCONNECT® |
| ANSI/TIA Category | Cat6A |
| Cable Type | Shielded |
| Color | Blue |
| Conductor Type | Solid and Stranded |
| Integrated Dust Cover | Hinged Dust Cover |
| Mounting Compatibility | SL Series Faceplates and Panels |
| Termination Type | IDC |
| Termination Tool | JTT Termination Tool |
| Wiring Schemes | T568A, T568B |
| Transmission Standards | ANSI/TIA-568.2-D, ISO/IEC 11801 Class EA |
| Regional Availability | Asia, Australia/New Zealand, EMEA, Latin America |
Dimensions
| Specification | Details |
|---|---|
| Height | 16.13 mm |
| Width | 14.44 mm |
| Depth | 38.8 mm |
| Maximum Compatible Cable Diameter | 8.5 mm |
| Maximum Compatible Insulated Conductor Diameter | 1.6 mm |
| Contact Plating Thickness | 1.27 µm |
| Compatible Solid Conductor Gauge | 22–26 AWG |
| Compatible Stranded Conductor Gauge | 24–26 AWG |
Electrical Specifications
| Specification | Details |
|---|---|
| Maximum Contact Resistance | 20 mΩ |
| Current Rating | 1.5 A @ 20°C |
| Dielectric Withstand Voltage (Conductive Surface) | 1500 Vac @ 60 Hz |
| Dielectric Withstand Voltage (Contact-to-Contact) | 1000 Vac @ 60 Hz |
| Minimum Insulation Resistance | 500 MΩ |
| Safety Voltage Rating | 150 Vac |
| Remote Powering Support | IEEE 802.3bt Type 4 Compliant |
| PoE Support | Up to 90W (PoE++) |
| PoE Durability | Over 3,000 Plug-to-Jack Mating Cycles |
Material Specifications
| Specification | Details |
|---|---|
| Contact Base Material | Beryllium Copper |
| Contact Plating Material | Gold |
| IDC Termination Material | Phosphor Bronze |
| Housing Material | Zamak, PC+ABS |
| Termination Contact Plating | Tin |
Mechanical Specifications
| Specification | Details |
|---|---|
| Plug Retention Force | 90 N |
| Mating Cycle Compliance | IEC 60603-7 Series |
Environmental Specifications
| Specification | Details |
|---|---|
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | Up to 95% (Non-Condensing) |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | cULus |
Packaging Information
| Specification | Details |
|---|---|
| Packaging Quantity | 1 Piece |
| Packaging Type | Bag |
Compliance & Certifications
| Certification | Status |
|---|---|
| RoHS | Compliant |
| UK RoHS | Compliant |
| REACH SVHC | Compliant |
| China RoHS | Below Maximum Concentration Value |
| RCM | Compliant with Electrical Safety & Telecommunications Requirements |
